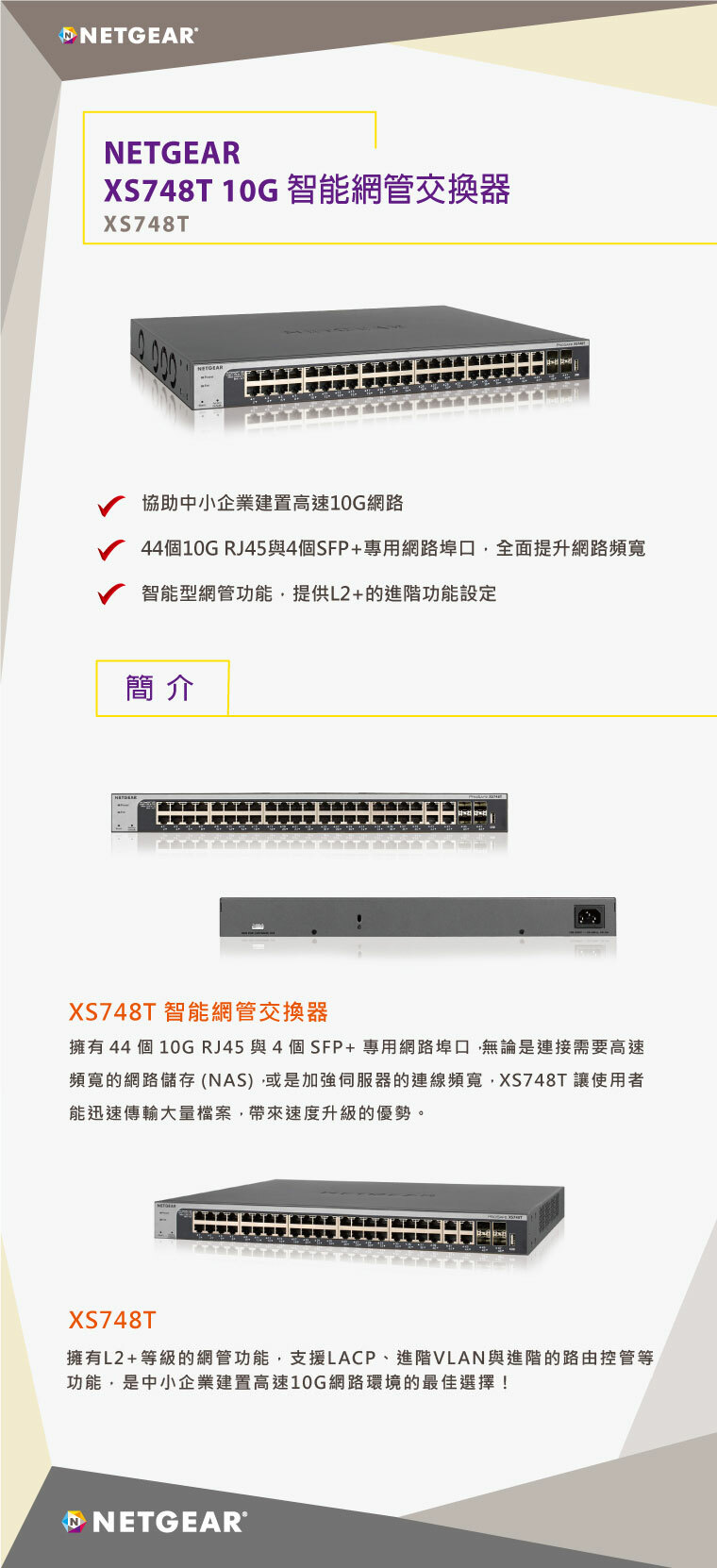

NETGEAR XS748T 44埠 10G Gigabit + 4埠 10G光纖 智能網管交換器

產品規格

網路介面

u  1G/10G copper ports: 44

u  1G/10G SFP+ (fiber) ports: 4(dedicated)

u  Firmware/ Config Access: 1 xUSB

硬體規格

u  CPU: 800 MHz Dual Core

u  RAN: 512MB

u  FLASH: 8MB SPI + 256MB NANDFlash

硬體效能

u  Packet buffer memory: 3MB

u  Forwarding modes: Store-and-forward

u  Bandwidth: 960Gbps

u  MAC Address database size:16K

u  Multicast groups: 512

u  Number of VLANs: 512

u  Number of ARP cache entries: 1024

u  Number of DHCP snoopingbindings: 1K

u  Access Control Lists (ACLs): 164shared for MAC, IP and IPv6 ACLs

u  Packet forwarding rate: 714.2 (Mfpsor Mpps)

u  Jumbo frame support: Up to 10Kpacket size

u  Multicast IGMP Group: 512

L2 支援協定

u  IEEE 802.1Q VLAN tagging

u  IP-based VLANs

u  MAC-based VLANs

u  Auto-VoIP

u  Auto-Video VLAN

u  Private VLAN

u  Broadcast, multicast, unknownunicast  storm control

u  IEEE 802.3ad - LAGs (LACP)

u  IEEE 802.3x (full duplex andflow control)

u  IEEE 802.1D Spanning TreeProtocol

u  IEEE 802.1w Rapid SpanningTree Protocol

u  IEEE 802.1s Multiple SpanningTree Protocol

u  IGMP snooping (v1, v2 and v3)

u  MLD snooping support (v1 andv2)

u  IGMP snooping queries

u  Block unknown multicast

L3 支援協定

u  DHCP client

u  DHCP snooping

u  Static Routes (IPv4/IPv6): 64/64

u  VLAN routing

u  Host ARP table (number ofentries): 1024

u  Number of IP VLAN interfaces(routed VLANs): 32

LINK AGGREGATION

u  IEEE 802.3ad - LAGs (LACP)

u  Manual Static LAG

u  Static or LACP LAGs/ membersin each LAG: 24 LAGs with max 8  membersin each LAG

NETWORK MONITORINGAND DISCOVERY SERVICES

u  802.1ab LLDP

u  SNMP: v1, v2c, v3

u  RMON group: 1,2,3,9

網路安全協定

u  IEEE 802.1x

u  RADIUS accounting

u  Access Control Lists (ACLs):L2 / L3 / L4

u  TCP/UPD-based ACLs

u  IEEE 802.1x RADIUS portaccess authentication

u  Port-based security by lockedMAC addresses

u  Broadcast, multicast, unknownunicast storm control

QUALITY OF SERVICE(QOS)

u  Port-based rate limiting: Ingressand egress

u  Port-based QoS

u  Support for IPv6 fields

u  DiffServ QoS

u  IEEE 802.1p COS

u  Destination MAC and IP

u  IPv4 and v6 DSCP

u  IPv4 and IPv6 ToS

u  TCP/UDP-based

u  Weighted Round Robin (WRR)

u  Strict priority queuetechnology

管理功能

u  Password management

u  Configurable management VLAN

u  Admin access control viaRADIUS and TACACS+

u  SNTP client over UDP port 123

u  Port mirroring

u  Web browser-based graphicaluser interface (GUI)

u  Dual software (firmware)image

u  Dual configuration file

u  File transfers (uploads,downloads): TFTP / HTTP

體積與重量

u  Dimensions (W x D x H): 440 x204 x 43 mm

u  Weight: 6.25 kg

使用環境

u  Operating temperature: 0° to50°C (32° to 122°F)

u  Humidity (relative): 90%maximum relative humidity (RH), non-condensing

u  Storage temperature: –20° to 70°C (– 4° to158°F)

u  Humidity  (relative): 95% maximum relative humidity,non-condensing

包裝內容物

u  ProSAFE® 10-Gigabit EthernetSmart Managed Switch

u  Power cord (localized tocountry of sale)

u  Rack-mounting kit

u  Rubber footpads for tabletopinstallation

u  Quick install guide

保固

五年保固
