Ppelink MAX BR1 MK2 LTEA W T

LAN

• DHCP Server for LAN Clients
• Extended DHCP Options
• DHCP Reservation
• DNS Proxy for LAN Clients
• VLAN on LAN Support
• Per-Port VLAN Support

Security

• Stateful Firewall
• DoS Prevention
• Web Blocking
• Wef Filtering Blacklist

Load Balancing

• Intelligent Failover
• Session Persistence
• Per-Service Load Distribution
• Multiple Algorithms

Advanced QoS

• Individual Bandwidth Limit
• Application Prioritisation
• SIP, HTTPS, VPN QoS
• Custom Application QoS

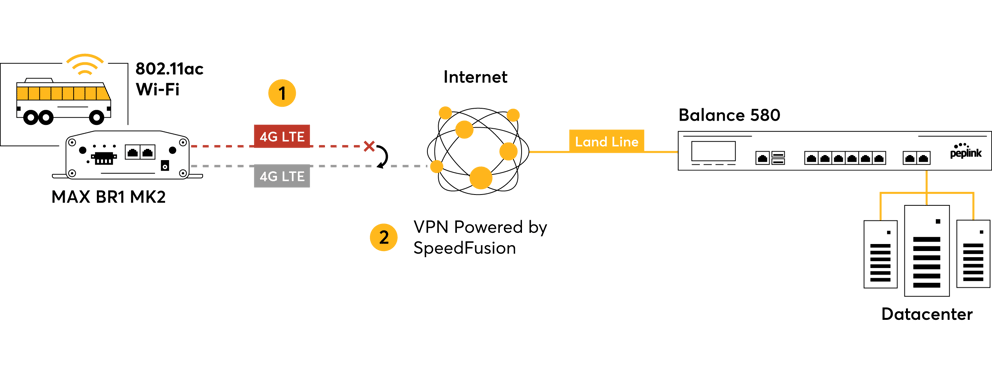

Complete VPN Solution

• PepVPN/SpeedFusion Hot Failover
  Site-to-Site VPN
  Hot Failover
  256-bit AES Encryption
  Pre-shared Key Authentication
  Dynamic Routing
  X.509 Certificate Support
• IPsec VPN (Network-to-Network)
  X.509 Certificate Support



Global Positioning System

• Integrated GPS
• Device Location Map
• Location Tracking Data with InControl 2
• Fleet Management with InControl 2

Networking

• NAT and IP Forwarding
• Static Routes
• Port Forwarding
• Many to One, One to One NAT
• NAT Pool
• SIP ALG, H.323 ALG
• UPnP, NAT-PMP

Captive Portal Support

• Support for Wired and Wireless LAN Clients
• Support for RADIUS Authentication
• Time and Usage Quotas on Open Access Mode
• Built-in Customisable Splash Page

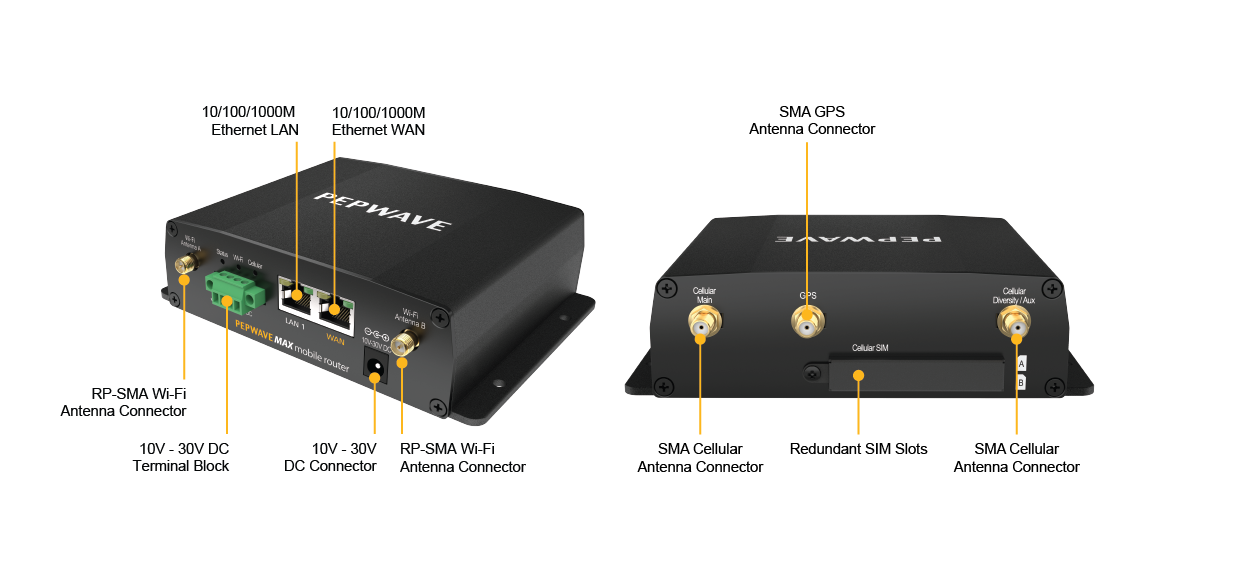

WAN Interface

• 1x GE
• 1x Embedded LTE-A Modem with Redundant SIM Slots

LAN Interface

• 1x GE

Wi-Fi Interface

• 802.11ac/a/n 2x2 MIMO Wi-Fi WAN and AP

Router Throughput

• 100Mbps

Recommended Users

• 1-60

Cellular and GPS Antenna Connector

• 2x SMA Antenna Connectors
• 1x SMA GPS Antenna Connector
• 2x Wi-Fi Connector

Power Input

• DC Jack/Terminal Block: 10V – 30V DC
• Pepwave Passive PoE 802.3at, 48V

Power Consumption

• 16W (max.)

Dimensions

• 5.8 x 5.0 x 1.6 inches
• 147 x 128 x 40 mm

Weight

• 0.96 pound 435 grams

Operating Temperature

• -40° – 131°F
• -40° – 55°C

Humidity

• 15% – 95% (non-condensing)

Certi�cations

• FCC, CE, RoHS, E-Mark
• RF Port Lightning Immunity: ITU-T K.20 (+/- 1.5 kV)
• EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance
• EN 50155: Railway Applications
• EN 61000: Electromagnetic Compatibility
